Vad är en trycksensor?

Hur fungerar en trycksensor?

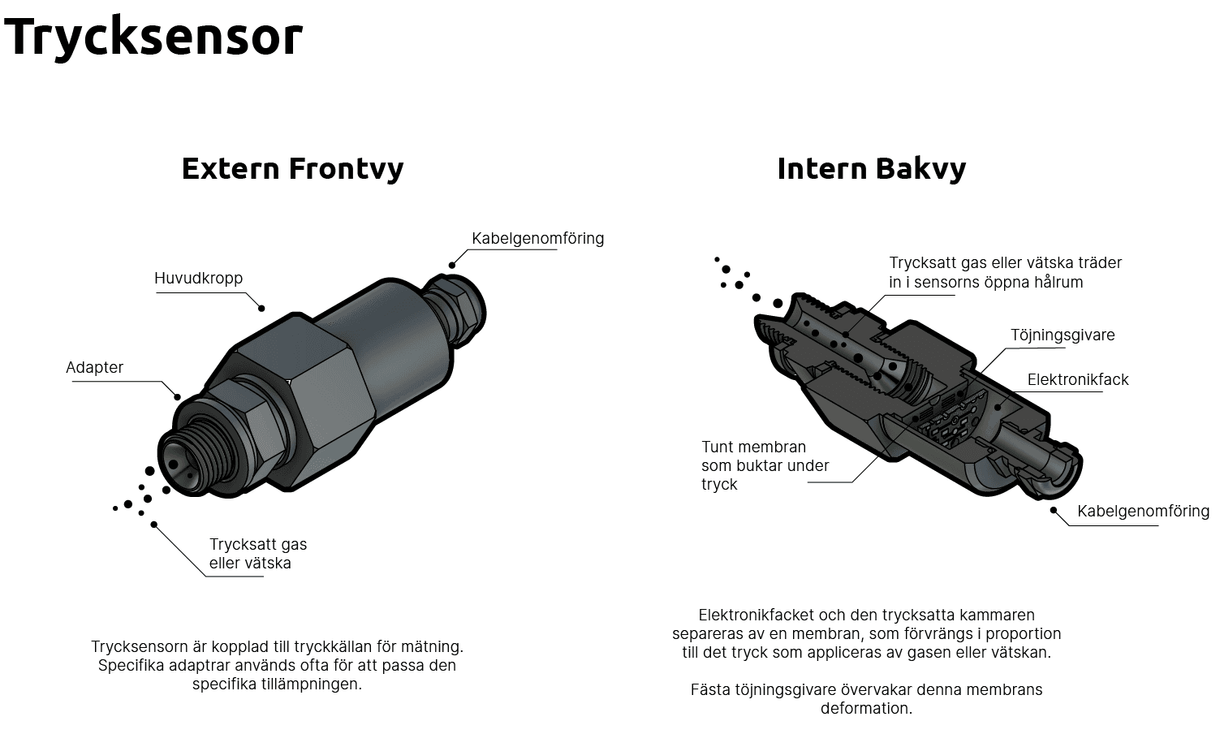

Pressure sensors are designed around the principle of converting physical force into an electrical output. They measure pressure by responding to the force exerted by a liquid or gas onto a sensitive element, such as a diaphragm. The reaction of this element to the force is then converted into an electrical signal.

Types of Pressure Sensors

When you start learning about pressure sensors, including pressure transducer sensors, you'll find different kinds of devices used to measure pressure. Each type is built specially to work best in certain situations. Let's check out the main types of pressure sensors to get a clear idea of how they work.

• Piezoresistive Pressure Sensor: These sensors function using the piezoresistive effect, where the resistance of the sensor material changes when subjected to pressure. They are widely used due to their high-resolution output and cost-effectiveness.
• Capacitive Pressure Sensor: These sensors operate by measuring changes in electrical capacitance caused by the movement of a diaphragm when pressure is applied. They are highly accurate and often used in low pressure applications.
• Resonant Frequency Pressure Sensor: These sensors detect pressure changes by measuring shifts in the resonant frequency of a vibrating element. They are known for their high accuracy and stability over time.
• Optical Pressure Sensor: These sensors utilize the change in the properties of light (like intensity, phase, or polarization) when it interacts with a pressure-sensitive material to measure pressure. They are resistant to electromagnetic interference and are often used in challenging environments.

Commonly used pressure sensor types find applications in digital, submersible, hydraulic, and static environments.


Applications of Pressure Sensors

Industrial pressure sensors are ubiquitous and serve an array of sectors. In the automotive industry, they are used to monitor fuel pressure, oil pressure, tire pressure, and more. In the medical field, pressure sensors play a critical role in various devices, such as ventilators, blood pressure monitors, and intravenous fluid control systems.

In the aviation industry, pressure sensors help determine altitude, control cabin pressure, and monitor engine performance. In manufacturing, they're used to monitor machinery and systems, ensuring they operate within safe and optimal pressure ranges.

Choose the Right Pressure Sensor

Selecting the right pressure sensor is dependent on several factors, including the type of pressure to be measured (absolute, gauge, or differential), the pressure range, the environmental conditions, and the required accuracy and stability.

Contact Flintec to learn more about our pressure sensors and our ability to create a tailor-made pressure sensor for your individual needs.
