<h2 class="line-above red-line-above">application</h2><div class="page" title="Page 1"><div class="layoutArea"><div class="column"><ul><li>Test & measurement tasks</li><li>Calibration of assembly machinery</li></ul></div></div></div>

<h2 class="line-above red-line-above">Key Features</h2><div class="page" title="Page 1"><div class="layoutArea"><div class="column"><ul><li>High accuracy ± 0.05%</li><li>Low profile design</li><li>Very low capacity</li><li>Lightweight</li><li>Simple 4 point mounting system</li><li>Compression force measurement</li><li>Aluminium construction</li><li>Compensated temp -15°C to + 71°C</li><li>Environmental protection to IP40</li></ul></div></div></div>

Press-fit Systems

Medical Robotics

Material Test Machines

UKCA

RoHS

IP40

<div class="page" title="Page 1"><div class="layoutArea"><div class="column"><div class="page" title="Page 1"><div class="layoutArea"><div class="column"><p>The model AP8 is a very low capacity, compact force transducer ideal for a range of measurement tasks.</p><p>The low profile, compact design ensures measurement tasks are straightforward even in confined spaces within assembly machinery or test equipment. Perform highly accurate measurements of compression forces with ease by utilising the simple mounting arrangement and the central load introduction facility.</p></div></div></div></div></div></div><p>Full-bridge, bonded foil strain gauge technology provides excellent long-term stability and ensures high performance even in applications requiring over 1 million load cycles.</p><p>Available with a range of cable types, cable lengths and connectors. As an additional aid to system integrators, the AP8 can be supplied as a TEDS (transducer electronic data sheet) enabled smart transducer. This feature provides an on board memory chip storing manufacturing and calibration data.</p>

Datasheet

CAD Drawings









Test & Measurement

Process Automation & Control

Process Weighing

Austria

Australia

Brazil

Canada

Colombia

Germany

Spain

France

India

Italy

Korea

Mexico

Netherlands

New Zealand

Singapore

Sweden

Vietnam

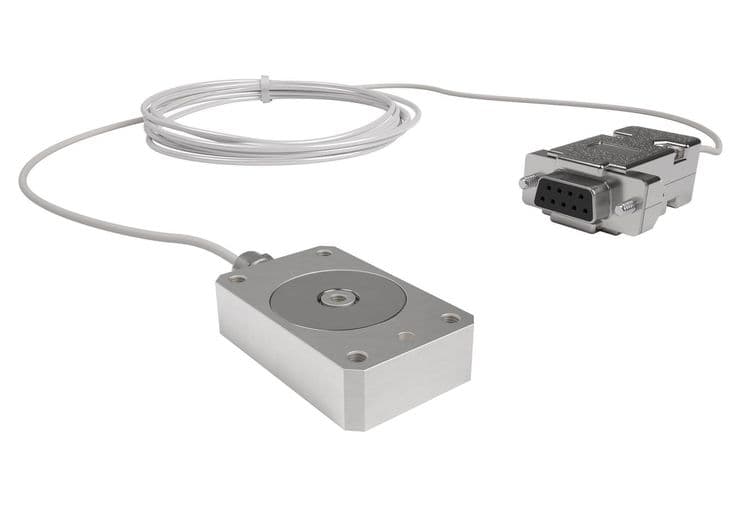

AP8 low profile force sensor
