Medical Scales

RoHS

UKCA

IP67

The MC1 is a high-performance, cost-effective miniature beam load cell designed for test and measurement applications where space is limited.It is available in capacities ranging from 5lb to 250lb, with all models offering accuracy within ±0.03% non-linearity of rated output. At rated output, the MC1 provides high-resolution performance with minimal deflection.Constructed from aerospace-grade 2024 aluminium, all models incorporate Flintec-designed and manufactured strain gauges, ensuring higher output and superior thermal performance.For an overload-protected version of the MC1 in 5lb and 10lb capacities, see the MC4.

Datasheet
















Test & Measurement

Medical Devices

Weighing Machinery

Compact miniature beam design

High performance with ±0.03% non-linearity

High output of 3mV/V

Low profile with a height of 25.4mm (1 inch)

Cost-effective solution

Durable protective cover

Australia

Canada

India

Netherlands

New Zealand

Singapore

Sweden

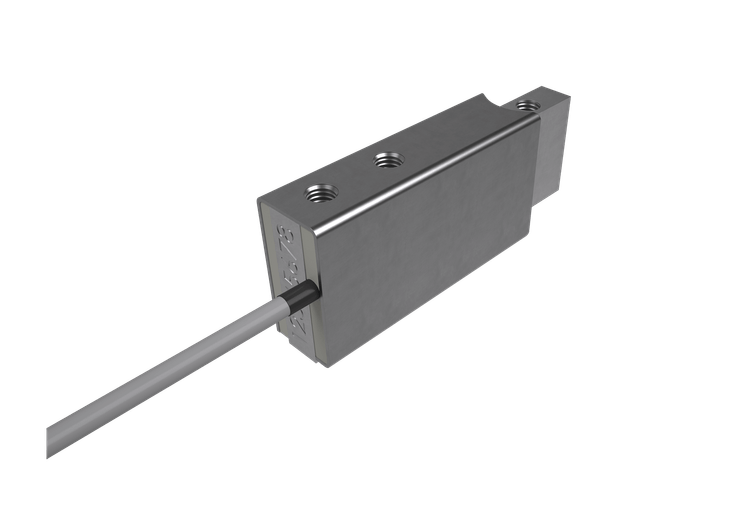

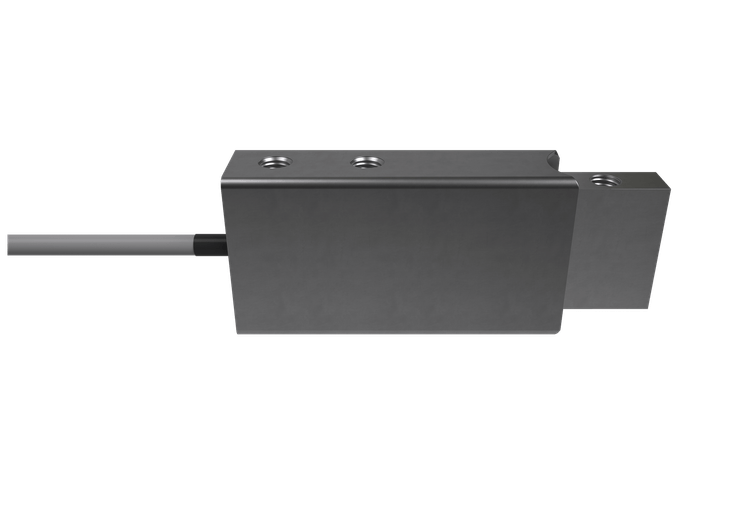

MC1 Miniature Beam Load Cell

5lb - 250lb

MC1 Miniature Beam Load Cell(5lb - 250lb)

MC1 Miniature Beam Load Cell(5lb - 250lb)

Applications

Key Features

Downloads

Related Industries

Let's Talk
