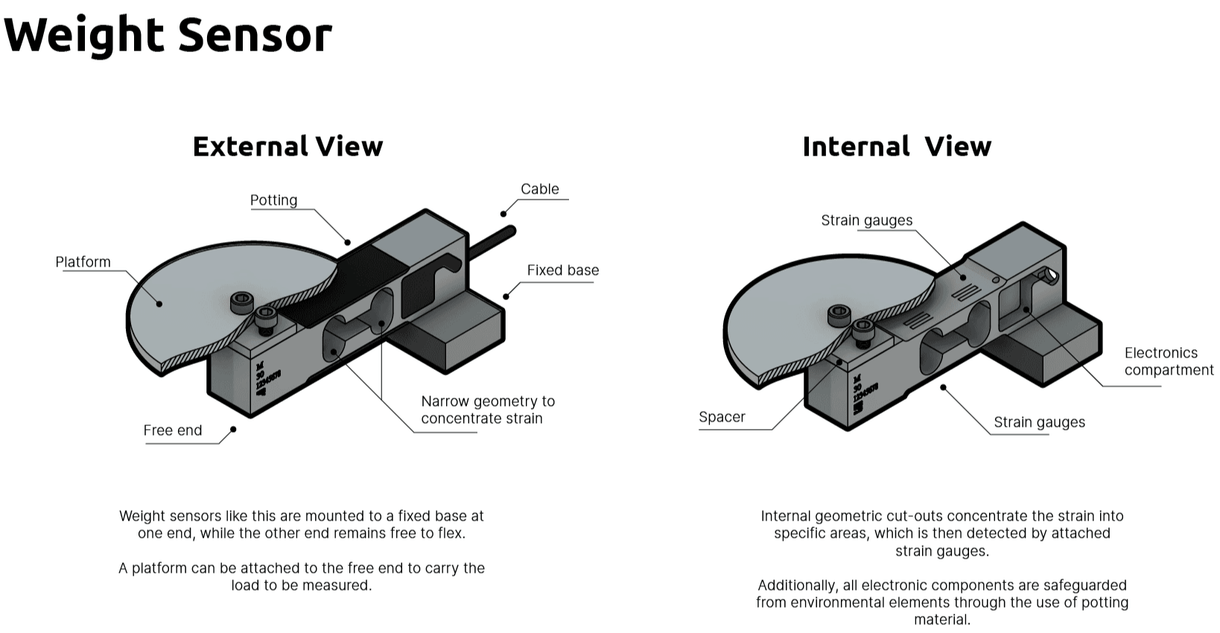

What is a Weight Sensor?

How Do Weight Sensors Work?

A weight sensor operates based on material deformation under pressure or force, which causes proportional changes in electrical resistance.

Here's a step-by-step guide to how a weight sensor works:

1. Detecting Electrical Resistance: At its core, a weight sensor has one or more strain gauges, conductive devices that alter their electrical resistance when stretched or compressed.
2. Deformation Under Weight: When weight is applied, it causes the strain gauges to deform, changing their resistance in a measurable way.
3. Measuring Weight: The strain gauges are arranged and connected, often in a Wheatstone bridge configuration, to accurately measure resistance changes.
4. Electrical Signal Conversion: These measurements are converted into an electrical signal that is proportional to the applied force. The electrical signal is processed and output as a weight reading.

Weight sensors can be designed and manufactured using a variety of materials and structures to cater to different applications, each with unique requirements in terms of load capacity, precision, environmental resilience, and physical dimensions.

Types of Weight Sensors

Various types of weight measuring devices can fall under the category of weight sensors, including:

• Load Cell: These are the most common type of weight sensor. Load cells are transducers that convert force into an electrical signal. The change in signal is proportional to the amount of force applied. This property allows them to measure weight with high precision. Load cells for weighing come in several varieties themselves, each designed to handle specific types of loads and applications.
• Force Sensor: Force sensors operate on similar principles as load cells. They measure the force applied to them and convert it into an electrical signal. However, they often focus on a broader range of forces, not just those directly associated with weight due to gravity. Force sensors are used in a wide array of applications, from automotive and aerospace to robotics and medical devices.
• Pressure Sensor: While not exclusively used for weight measurement, pressure sensors can serve as weight sensors in certain scenarios. For example, they are used to measure the weight of a fluid in a tank by sensing the pressure at the bottom.
• Torque Sensor: These sensors measure the twisting or rotational force, also known as torque, on a system. While they are not direct weight sensors, they are often used in combination with other sensors to measure the weight or force exerted on a rotating system.

Each type of weight sensor offers unique advantages as a weight measuring device, suited to specific applications, ensuring a sensor is available for virtually any weight measurement requirement across various industries.

Applications of Weight Sensors

Weight sensors have a multitude of applications across numerous industries. Thanks to their high accuracy and versatility, they've become integral components in many operations, ensuring accuracy, safety, and efficiency. Here are some of the common applications of weight sensors:

• Industrial Scales: In various forms, from platform scales to crane scales, a weight sensor ensures precise and reliable weight measurements. They're crucial in many industries, including shipping, logistics, waste management, and more, for tasks such as cargo weighing and inventory control.
• Automated Manufacturing: Weight sensors play a critical role in automation. They ensure the correct amount of material is used during production, promoting consistent quality and cost-efficiency. Additionally, they are used in quality control to check the weight of products, rejecting those that are over or under the specified limit.
• Medical and Healthcare: In medical devices like infusion pumps and dialysis machines, a weight sensor controls and monitor the flow of fluids. They're also used in patient lifting equipment and hospital beds to ensure safety.
• Automotive: Weight sensors are used in automobiles for multiple applications, including measuring the steering and braking forces and detecting the occupancy and weight of passengers for airbag control systems.
• Retail and Commercial: In the retail industry, a weight sensor is used in point-of-sale systems and self-service checkouts. They're also commonly used in postal services to weigh parcels and letters for postage calculations.
• Agriculture: In farming and agriculture, weight sensors are used in animal feed systems and grain silos to measure feed levels and yields accurately.
• Laboratory: In a laboratory setting, precision scales with high-resolution weight sensors are used for accurate measurements, crucial for research and experiments.
• On-Board Vehicle Weighing: Weight sensors are used in on-board weighing systems for vehicles, such as trucks and delivery vans. They help to ensure that the vehicles are not overloaded and comply with legal weight limits.
• Aerospace: In aerospace applications, weight sensors are used for cargo and fuel weight measurement in aircraft. Accurate weight measurements are vital for balancing aircraft and calculating the required fuel.
• Robotics and Automation: With advancements in robotics and automation, weight sensors are increasingly being used in robotic arms for handling objects, enabling them to adjust their actions based on the weight of the object.
